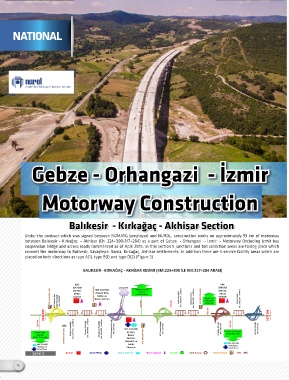

Page 16 - World Of Nurol Magazine 28

NATIONAL

Gebze - Orhangazi - İzmir

Motorway Construction

Balıkesir - Kırkağaç - Akhisar Section

Under the contract which was signed between NOMAYG (employer) and NUROL, construction works on approximately 93 km of motorway
between Balıkesir - Kırkağaç - Akhisar (Ch: 224+300-317+284) as a part of Gebze - Orhangazi - İzmir - Motorway (Including Izmit bay
suspension bridge and access roads commenced as of April 2015. In this section 5 junctions and toll collection areas are taking place which
connect the motorway to Balıkesir, Savaştepe, Soma, Kırkağaç, Akhisar settlements. In addition there are 4 service facility areas which are
placed on both directions as type A(1), type B(1) and type D(2).(Figure 3)

BALIKESİR - KIRKAĞAÇ - AKHİSAR KESİMİ (KM:224+300 İLE KM:317+284 ARASI)

KM: KM:
238+000 KM: 246+000 SAVAŞTEPE Kızılören/Heciz 299+500
OHT (KM:228+100) K15 Balıkesir Batı Köprülü Kavşağı Km: 230+465 Santrali OHT (KM:246+000) Beton Santrali 5 Km Eksen Sol 279+000 Ayıtlı Viyadüğü Km: 282+627 L=400 m Döşeme Deresi Km: 284+290 L=360 m OHT (KM:289+840) ocağı 250m Santrali Çoban Hasan Km: 310+214 L=796 m
Şantiye,
Şantiye,
Taşocağı
Prekast Kiriş
Beton
Beton
Sahası ve
Çavdır Taş
272+000
Eksen Sol
224+300 291+000 317+284
223+000 300+000
BİM (KM:230+465)
Şantiye,
Ortaçal Tepe Ertuğrul Viyadüğü Km: 237+511 L=1280 m Köyyeri Viyadüğü Km: 240+040 L=760 m Savaştepe Viyadüğü Km: 255+420 L=840 m K16 Savaştepe Kavşağı Km: 262+380 KM: 272+000 K17 Soma Kavşağı Km: 277+355 Kırkağaç Kavşağı Km: 299+518 Zambaktaşı Taşocağı Akhisar Kavşağı Km: 315+114
1,9 Km Eksen Sağ
Taşocağı Beton
0,5 Km Eksen Sağ Mekanik ve OHT (KM:266+080)
Santrali,
KM: 223+000 Asfalt KM: 302+000
Mekanik ve
Mekanik ve Plentleri Asfalt Plenti
Asfalt Plenti
Şekil 2 Şantiye Asfalt Plenti Mekanik Plenti Beton Santrali Ocaklar Stok Sahası Hizmet Tesisi BİM
