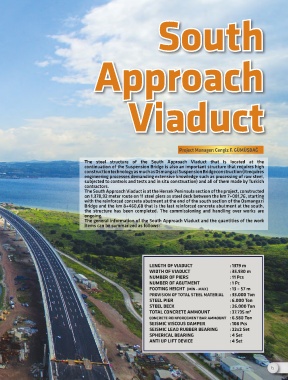

South

Approach

Viaduct

Project Manager: Cengiz F. GÜMÜŞDAĞ

The steel structure of the South Approach Viaduct that is located at the
continuation of the Suspension Bridge is also an important structure that requires high
construction technology as much as Osmangazi Suspension Bridge construction (it requires
engineering processes demanding extensive knowledge such as processing of raw steel,
subjected to controls and tests and in situ construction) and all of them made by Turkish
contractors.
The South Approach Viaduct is at the Hersek Peninsula section of the project, constructed
on 1.378,92 meter route on 11 steel piers as steel deck between the km 7+081,76, starting
with the reinforced concrete abutment at the end of the south section of the Osmangazi
Bridge and the km 8+460,68 that is the last reinforced concrete abutment at the south,
the structure has been completed. The commissioning and handling over works are
ongoing.
The general information of the South Approach Viaduct and the quantities of the work
items can be summarized as follows:

LENGTH OF VIADUCT : 1379 m
WIDTH OF VIADUCT : 35.930 m
NUMBER OF PIERS : 11 Pcs
NUMBER OF ABUTMENT : 1 Pc
FOOTING HEIGHT (MİN - MAX) : 13 – 57 m
PROVISION OF TOTAL STEEL MATERIAL : 33.000 Ton
STEEL PIER : 6.000 Ton

STEEL DECK : 26.000 Ton
TOTAL CONCRETE AMMOUNT : 37.735 m 3
CONCRETE REINFORCEMENT BAR AMMOUNT : 6.580 Ton
SEISMIC VISCOUS DAMPER : 108 Pcs
SEISMIC LEAD RUBBER BEARING : 22x2 Set
SPHERICAL BEARING : 4 Set
ANTI UP LIFT DEVICE : 4 Set
