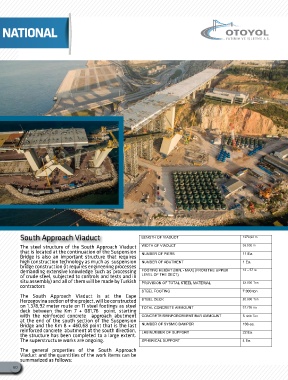

NATIONAL

South Approach Viaduct

Three dimensional modeling

South Approach Viaduct LENGTH OF VIADUCT 1378,92 m

The steel structure of the South Approach Viaduct WIDTH OF VIADUCT 35.930 m
that is located at the continuation of the Suspension NUMBER OF PIERS 11 Ea.
Bridge is also an important structure that requires
high construction technology as much as suspension NUMBER OF ABUTMENT 1 Ea.
bridge construction (it requires engineering processes
demanding extensive knowledge such as processing FOOTING HEIGHT (MIN. - MAX) (FROM THE UPPER 13 – 57 m
of crude steel, subjected to controls and tests and in LEVEL OF THE DECT)
situ assembly) and all of them will be made by Turkish PROVISION OF TOTAL STEEL MATERIAL 33.000 Ton
contractors
STEEL FOOTING 7.000 ton
The South Approach Viaduct is at the Cape
Herzegovina section of the project, will be constructed STEEL DECK 26.000 Ton
on 1.378,92 meter route on 11 steel footings as steel TOTAL CONCRETE AMMOUNT 37.735 m3
deck between the Km 7 + 081,76 point, starting
with the reinforced concrete approach abutment CONCRETE REINFORCEMENT BAR AMMOUNT 5 .900 Ton
at the end of the south section of the Suspension
Bridge and the Km 8 + 460,68 point that is the last NUMBER OF SYSMIC DAMPER 108 ea.
reinforced concrete abutment at the south direction, LRB NUMBER OF SUPPORT 22 Ea.
the structure has been completed to a large extent.
The superstructure works are ongoing. SPHERICAL SUPPORT 4 Ea.

The general properties of the South Approach
Viaduct and the quantities of the work items can be
summarized as follows:
